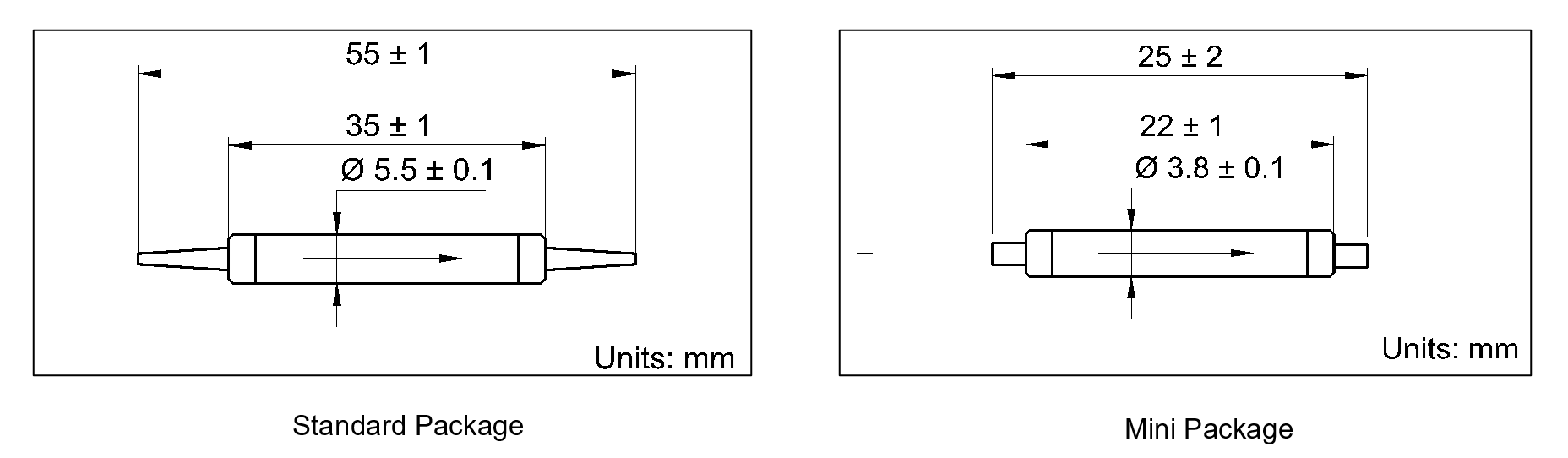

Package Dimensions
Gain Flattening Filter
Overview
The Gain Flattening Filter is a micro optics device based on environmentally stable thin-film filter technology. It is used to flatten the spectral gain in EDFAs. The components are characterized with low error function, low insertion loss, high return loss, excellent environmental stability and high-power handling capability.
Parameter | Unit | Value |
Wavelength Range | nm | As filter spec |
Max. Peak Insertion Loss | dB | 0.6 |
Typ. Peak Insertion Loss | dB | 0.4 |
Peak to Peak in Error Function | dB | 0.5 |
Wavelength Thermal Drift | nm/℃ | ≤ 0.002 |
Min. Return Loss | dB | 50 |
Max. Polarization Dependent Loss | dB | 0.1 |
Polarization Mode Dispersion | ps | 0.1 |
Max. Optical Power (Continuous Wave) | mW | 300 |
Max. Tensile Load | N | 5 |
Fiber Type | - | SMF-28 |
Operating Temperature | ℃ | - 5 to + 70 |
Storage Temperature | ℃ | - 40 to + 85 |
1Above specifications are for device without connector. For devices with connectors, IL increases by 0.3 dB, RL decreases by 5 dB
2All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for Gain Flattening Filter
- Configuration: Specify FC/UPC 250 μm Bare Fiber 1.0 m Standard Package - Price: $10000 - Stock: 998
- Configuration: Specify FC/UPC 250 μm Bare Fiber 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/UPC 250 μm Bare Fiber Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/UPC 250 μm Bare Fiber Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/UPC 900 μm Loose Tube 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/UPC 900 μm Loose Tube 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/UPC 900 μm Loose Tube Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/UPC 900 μm Loose Tube Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 250 μm Bare Fiber 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 250 μm Bare Fiber 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 250 μm Bare Fiber Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 250 μm Bare Fiber Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 900 μm Loose Tube 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 900 μm Loose Tube 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 900 μm Loose Tube Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify FC/APC 900 μm Loose Tube Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 250 μm Bare Fiber 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 250 μm Bare Fiber 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 250 μm Bare Fiber Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 250 μm Bare Fiber Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 900 μm Loose Tube 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 900 μm Loose Tube 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 900 μm Loose Tube Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/UPC 900 μm Loose Tube Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 250 μm Bare Fiber 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 250 μm Bare Fiber 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 250 μm Bare Fiber Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 250 μm Bare Fiber Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 900 μm Loose Tube 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 900 μm Loose Tube 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 900 μm Loose Tube Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify SC/APC 900 μm Loose Tube Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 250 μm Bare Fiber 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 250 μm Bare Fiber 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 250 μm Bare Fiber Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 250 μm Bare Fiber Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 900 μm Loose Tube 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 900 μm Loose Tube 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 900 μm Loose Tube Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify None 900 μm Loose Tube Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 250 μm Bare Fiber 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 250 μm Bare Fiber 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 250 μm Bare Fiber Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 250 μm Bare Fiber Specify Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 900 μm Loose Tube 1.0 m Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 900 μm Loose Tube 1.0 m Mini Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 900 μm Loose Tube Specify Standard Package - Price: $10000 - Stock: 1000
- Configuration: Specify Specify 900 μm Loose Tube Specify Mini Package - Price: $10000 - Stock: 1000
