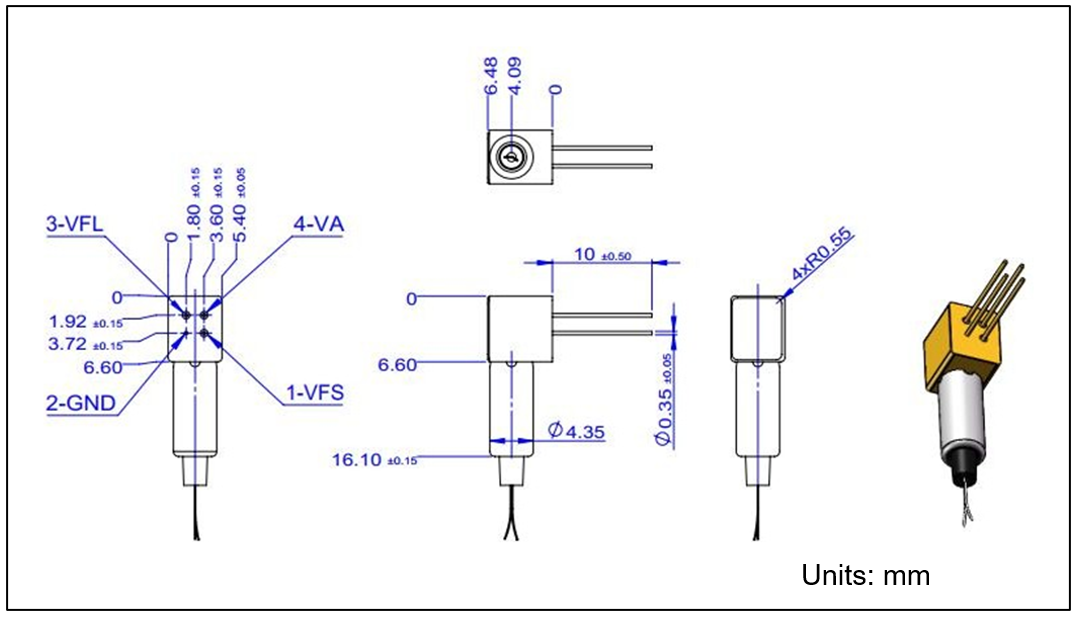

Package Dimensions

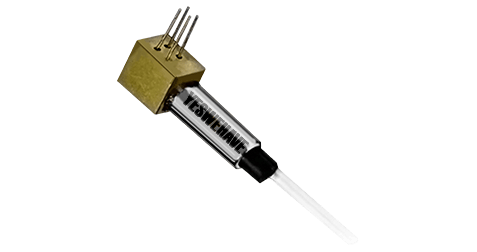

Mini Tunable Optical Filter

Overview

YESWEHAVE' MEMS tunable filter is based on MEMS (Micro-Electro-Mechanical Systems) and grating technologies. It offers a compact size, fast response, long lifespan, and excellent stability and reliability. The device supports wavelength ranges across the O-band, C-band, or L-band and includes an integrated VOA (Variable Optical Attenuator) function.


Parameter

Unit

Max.

Min.

Wavelength Range

O-Band

nm

1290

1330

C-Band

nm

1528

1565

L-Band

nm

1575

1610

Insertion Loss (IL)

dB

<3.5 (typical<2.5)

Response Time

ms

≤20

WDL@0dB

dB

<1.0

Center Frequency Polarization-Dependent Loss@0dB

dB

<0.5

3 dB Bandwidth

nm

1.0 - 1.4

20 dB Bandwidth

nm

2.6 - 3.6

Return Loss (RL)

dB

>40

VOA Type

-

Dark or Bright

VOA  Attenuation Range

dB

>35

Side Mode Suppression Ratio

dB

≤30

Lifetime

cycles

1*10^9

Maximum Input Optical Power

dBm

20

Operating Temperature

℃

-5

70

Storage Temperature

℃

-40

85

ESD Threshold (HBM)

V

500

DC Drive Voltage

V

0 - 50


Ordering InformationQtyPriceAvailable
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.

Available Configurations and Pricing for Mini Tunable Optical Filter

  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.5 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.5 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.5 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.5 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.5 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.5 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.75 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.75 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.75 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.75 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.75 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 0.75 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 1.0 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 1.0 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 1.0 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 1.0 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 1.0 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Dark   SM, 9/125 1.0 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.5 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.5 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.5 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.5 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.5 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.5 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.75 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.75 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.75 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.75 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.75 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 0.75 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 1.0 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 1.0 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 1.0 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 1.0 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 1.0 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1290 - 1320 nm Bright  SM, 9/125 1.0 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.5 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.5 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.5 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.5 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.5 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.5 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.75 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.75 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.75 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.75 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.75 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 0.75 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 1.0 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 1.0 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 1.0 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 1.0 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 1.0 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Dark   SM, 9/125 1.0 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.5 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.5 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.5 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.5 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.5 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.5 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.75 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.75 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.75 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.75 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.75 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 0.75 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 1.0 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 1.0 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 1.0 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 1.0 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 1.0 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1528 - 1565 nm Bright  SM, 9/125 1.0 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.5 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.5 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.5 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.5 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.5 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.5 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.75 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.75 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.75 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.75 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.75 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 0.75 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 1.0 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 1.0 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 1.0 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 1.0 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 1.0 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Dark   SM, 9/125 1.0 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.5 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.5 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.5 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.5 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.5 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.5 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.75 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.75 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.75 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.75 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.75 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 0.75 m Specify - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 1.0 m FC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 1.0 m FC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 1.0 m SC/UPC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 1.0 m SC/APC - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 1.0 m None - Price: $10000 - Stock: 1000
  • Configuration: Specify 1575 - 1610 nm Bright  SM, 9/125 1.0 m Specify - Price: $10000 - Stock: 1000
