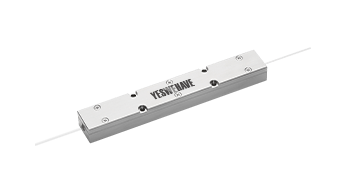

High Power (18+1)x1 Pump & Signal Combiner
Overview
The High Power (18+1)x1 Pump & Signal Combiner enables highly efficient combining of the powers from up to18 multimode pump diodes and a red beam from the signal fiber into a double cladding output fiber. The device can handle maximum 2000 W combined power. Available for different fiber types.
Parameter | Unit | Value |
Product Type | - | (18+1) ×1 |
Pump Wavelength Range | nm | 900 - 1000 |
Signal Wavelength Range | nm | 650 |
Fiber Type for Input (Pump Channel) | - | Nufern MM-S135/155-22FA |
Fiber Type for Input (Signal Channel) | - | Nufern LMA-GDF-20/400-M |
Fiber Type for Output | - | Nufern LMA-GDF-20/400-M |
Max. Pump Power per Port | W | 150 |
Max. Combined Pump Power | W | 2700 |
Max. Signal Channel Insertion Loss | dB | 0.8 |
% | 98 | |
% | 97 | |

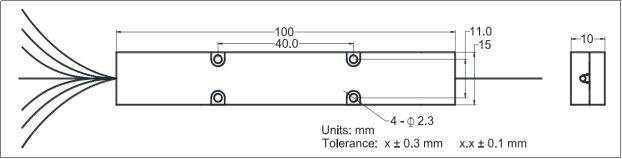

Package Dimensions | mm | 100 (L) ×15 (W) ×10 (H) |
Operating Temperature | ℃ | -5 to +65 |
Storage Temperature | ℃ | -40 to +85 |
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for High Power (18+1)x1 Pump & Signal Combiner
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 999
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 999
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Specify Specify 0.75 m - Price: $10000 - Stock: 999
- Configuration: 650 nm 915 nm Nufern MM-S135/155-22FA Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 915 nm Specify Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 999
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Nufern MM-S135/155-22FA Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm 976 nm Specify Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Nufern MM-S135/155-22FA Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: 650 nm Specify Specify Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Nufern MM-S135/155-22FA Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 915 nm Specify Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Nufern MM-S135/155-22FA Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 998
- Configuration: Specify 976 nm Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Specify Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Specify Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Specify Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Specify Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Specify Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify 976 nm Specify Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Nufern MM-S135/155-22FA Specify Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Nufern LMA-GDF-20/400-M Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Nufern LMA-GDF-20/400-M Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Nufern LMA-GDF-20/400-M Specify Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Specify Nufern LMA-GDF-20/400-M 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Specify Nufern LMA-GDF-20/400-M Specify - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Specify Specify 0.75 m - Price: $10000 - Stock: 1000
- Configuration: Specify Specify Specify Specify Specify Specify - Price: $10000 - Stock: 1000
