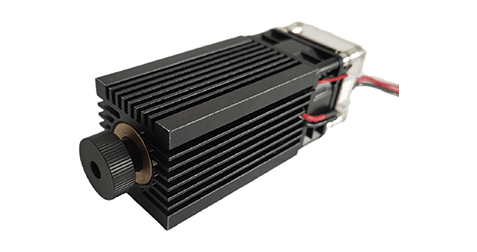

Super High Power Uniform Line Laser
Super High Power Uniform Line Laser deliver high output power up to 40W which are ideal for industrial applications in harsh Environment. Both “Powell Lens” and “Array Lens” are adopted to generate high quality laser lines. The super high power line lasers Are widely used in Machine Vision, 3D Scanner, Industrial Inspection, Road/rail Inspection, etc.
Parameter | Unit | Values |
Spectral Range | nm | 405, 450, 520, 650, 660, 780, 808, 850, 980, 1064 (other wavelength on request) |
Output Power | W | 10 W - 40 W |
Line Lines | - | Powell Lens, Array Lens |
Fan Angle | degree | 5°, 10°, 15°, 20°, 30°, 45°, 60°, 75°, 90°,110° |
Focus Options | - | Fixed or Adjustable |
Line Intensity Variation | - | ± 20% related to average power (80% of the line) |
Line Straightness | - | ± 0.1% (± 0.05% as option) |
Laser Drive Mode | - | CW, Analog Modulation, Digital Modulation |
Operating Voltage | V | 3 - 24 on request |
Housing Size | mm | 40 x 40 x 81 (Modular Housing Options) |
Housing Material | - | Aluminum (Black Anodized, Copper/Steel) |
MTPF | hrs | >10,000 |
