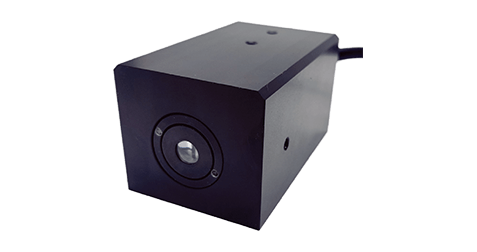

High Power Uniform Line Laser
High Power Uniform Line Lasers are designed to deliver consistently bright and evenly distributed laser lines for precise industrial and measurement applications. Using carefully matched Powell lenses, they eliminate central hot spots typical of Gaussian lasers and provide line thicknesses below 100 microns for sharp, reliable projections. Available in red, green, and blue wavelengths, these lasers combine high power output with modular housing and flexible optical configurations, allowing easy integration into machine vision systems, 3D scanning setups, and automated inspection equipment. Their uniform line projection ensures accurate measurements, precise alignment, and improved process control in diverse industrial environments.
Parameter | Unit | Values |
Spectral Range | nm | 405, 450, 520, 650, 660, 780, 808, 850, 980, 1064 (other wavelength on request) |
Output Power | W | 200 mW - 10 W |
Line Lines | - | Powell Lens |
Fan Angle | degree | 5°, 10°, 15°, 20°, 30°, 45°, 60°, 75°, 90°,110° |
Focus Options | - | Fixed or Adjustable |
Line Intensity Variation | - | ± 20% related to average power (80% of the line) |
Line Straightness | - | ± 0.1% (± 0.05% as option) |
Laser Drive Mode | - | CW, Analog Modulation, Digital Modulation |
Operating Voltage | V | 3 - 24 on request |
Housing Size | mm | 40 x 40 x 75 (Modular Housing Options) |
Housing Material | - | Aluminum (Black Anodized, Copper/Steel) |
MTPF | hrs | >10,000 |
