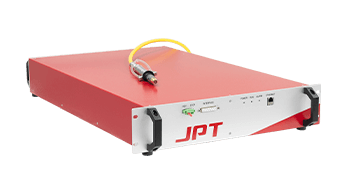

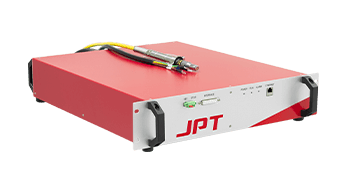

Single-Module CW 1000/2000/3000 W Fiber Laser
JPT single mode fiber laser (500W-1000W) is the optimal combination of optical, mechanical, electrical and software components. Through the controlling ports and the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and data can be collected. The laser uses water-cooling and shelf case design, with competitive advantage like high energy conversion (electric to light), low power consumption, maintenance free, fiber delivery, and easy to assemble, it is the most suitable laser source for industrial laser welding, cutting and other applications.
Parameter | Unit | Value | ||
Nominal Average Output Power | W | 1000 | 2000 | 3000 |
Beam Parameter Product | mm*mrad | < 2 @ 50 μm | ||
Central Emission Wavelength | nm | 1080 ± 10 | ||
Spectral Width@3dB | nm | < 6 | ||
Armored Cable Length | m | 15 | ||
Cooling Method | / | Water Cooled (Purified Water) | ||
Operating Voltage | V | 60 | 220 ± 10% | 380 ±10% |
Maximum Power Consumption | W | 3000 | 6000 | 9000 |
Switch on/off Time | μs | 20 | ||
Maximum Modulation Frequency | kHz | 20 | ||
Operation Temperature | ℃ | 10 ~ 40 | ||
Storage Temperature | ℃ | -10 ~ 60 | ||
N.W | KG | 9 | 31 | 41 |
Size (L×W×H) without Handle | mm | 230×290×56 | 505×482×105 | 672×482×105 |
Size (L×W×H) with Handle | mm | / | 575×482×105 | 742×482×105 |
