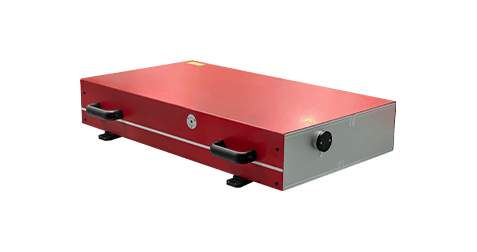

PS IR/UV Picosecond Laser
JPT-PS picosecond laser series are based on the novel application approach with a compact dual-layers cavity and smart opto-electronic design. It adapts to fine industrial machining environment and merging scientific characterizations. Presently infrared and ultraviolet version are available for the customs with a minimum pulse duration around 6 ps. JPT picosecond laser possesses powerful functions providing the POD and Burst Mode, the tunable repetition rate ranges from single short to 1MHz.
Parameter | Unit | Value | |||
Central Emission Wavelength | nm | 1064 / 532 / 355 nm | |||
Repetition Rate | kHz | Single Pulse – 1 MHz | |||
400 kHz | 500 kHz | 800 kHz | 1000 kHz | ||
Average Power(@1064nm) | W | 30 W | 31 W | 32 W | 32 W |
Average Power(@355nm) | / | 10 W | 10 W | 8 W | 7 W |
Single Pulse Energy(@1064nm) | μJ | 75 μJ | 62 μJ | 40 μJ | 32 μJ |
Single Pulse Energy(@355nm) | μJ | 25 μJ | 20 μJ | 10 μJ | 7 μJ |
Pulse Duration | / | < 10 ps @1064 nm | |||
Power Stability | / | RMS < 2% | |||
Pulse to Pulse Stability | / | RMS < 2% @1064nm | RMS < 3% @355nm | ||
Beam Quality | / | M² ≤ 1.3 | |||
Beam Pointing Stability | / | < 50 μrad/C°@1064 & 355nm | |||
Polarization | / | Horizontal | |||
Linear Polarization Ratio | / | > 100:1 | |||
Beam Circularity | / | > 85% | |||
Divergence (Full Angle) | / | ~ 2 mrad @1064nm | ~ 1 mrad @355nm | ||
Beam Diameter at Output | mm | 1.5 ± 0.5 (Customized Option Available) | |||
Power Configuration | V | 24 DC | |||
Power Consumption | W | < 600 (20W 1064nm @1MHz) | |||
Cooling Method | / | Closed Circuited Water Cooling | |||
Operation Condition | / | Temperature 15 - 35 ℃, Humidity < 65% | |||
Recommend Water Cooling Temperature | ℃ | 20 | |||
Pulse Picking Mode | / | Burst Mode (Burst Mode: 1~65535) Positioning Synchronizing Mode | |||
Starting Time (Warm) | min | < 10 | |||
Starting Time (Cool) | min | < 40 | |||
Storage Temperature | ℃ | -10 ~ 40 | |||
N.W | kg | 46 | |||
Size(W×D×H) | mm | 732 × 412 × 124 | |||
