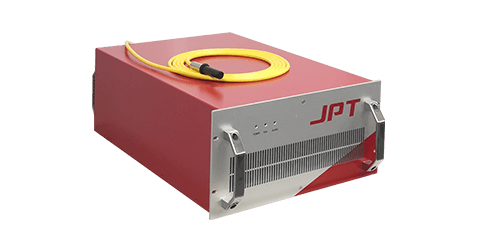

JPT QCW fiber laser is the optimal combination of optical, mechanical, electrical and software components. Through the controlling ports and the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and data can be collected. The laser uses air-cooling and shelf case design, with competitive advantage like high energy conversion (electric to light), low power consumption, maintenance free, fiber delivery, and easy move, it is the best option laser source for welding, cutting and other applications.
Parameter | Unit | Value |
Nominal Average Output Power | W | 300 |
Maximum Peak Power | W | 3000 |
Maximum pulse energy | J | 30 |
Repeat Frequency | Hz | 1 ~ 10000 |
Pulse Width | ms | 0.01 ~ 10 |
Beam Parameter Product | mm*mrad | ≤ 2 @ 50 μm |
Central Emission Wavelength | nm | 1080 ± 10 |
Spectral Width@3dB | nm | < 6 |
Armored Cable Length | M | 5 |
Cooling Method | Air Cooled | |
Operating Voltage | V | 48(DC) |
Maximum Power Consumption | W | 1900 |
Switch on/off Time | μs | 20 |
Operation Temperature | ℃ | 10 ~ 40 |
Storage Temperature | ℃ | -10 ~ 60 |
N.W | KG | 38 |
Size (L×W×H) | mm | 491 × 483 × 148 |
Size (L×W×H) with Handle | Mm | 561 × 483 × 148 |
