Pulse Stretcher for Ultrafast Lasers
Overview

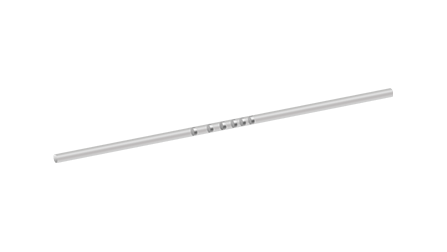

The pulse stretchers are chirped fiber bragg gratings for ultrafast fiber lasers. With YESWEHAVE's design and special process, the devices could provide large dispersion for pulse stretching and performance with outstanding reliability. Custom configurations are available.
Parameter | Unit | Values | |
Center Wavelength | nm | 1030 | |
Tolerance on Center Wavelength | nm | ± 1 | |
Dispersion Parameter (D2)1 | ps/nm | 107.0 | 10.3 |
Reflection Bandwidth (FWHM) | nm | 1 - 10 | 1 - 18 |
Tolerance on Reflection Bandwidth | nm | 1 | |
Peak Reflectivity | % | > 40 | |
Total Stretching Windows | ns | Up to 1.0 | |
Polarization Extinction Ratio | dB | ≥ 20 | |
Fiber Type1 | - | PM980 | |

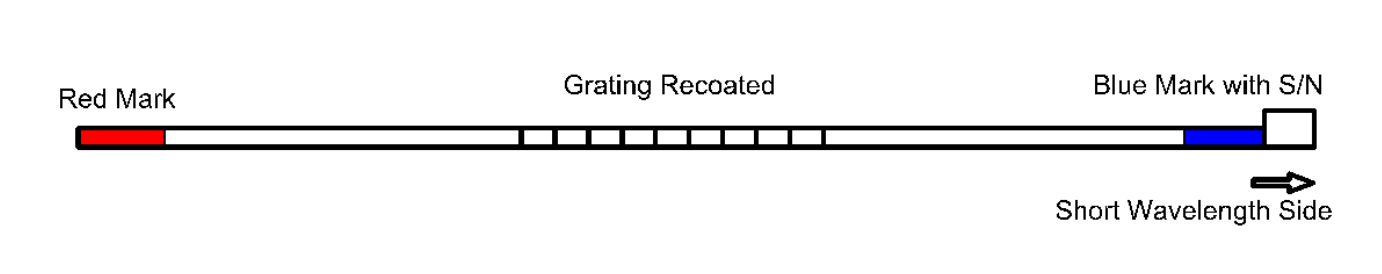

Package Dimensions | mm | Recoated | |
Storage Temperature | ℃ | - 40 to + 85 | |
1The dispersion parameter and fiber type could be customized.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.
Available Configurations and Pricing for Pulse Stretcher for Ultrafast Lasers
- Configuration: 1030 nm 107 ps/nm 10.0 nm 0.75 m - Price: $920 - Stock: 1000
- Configuration: 1030 nm 107 ps/nm 10.0 nm 1 m - Price: $920 - Stock: 1000
- Configuration: 1030 nm 10.3 ps/nm 10.0 nm 0.75 m - Price: $920 - Stock: 1000
- Configuration: 1030 nm 10.3 ps/nm 10.0 nm 1 m - Price: $920 - Stock: 1000
