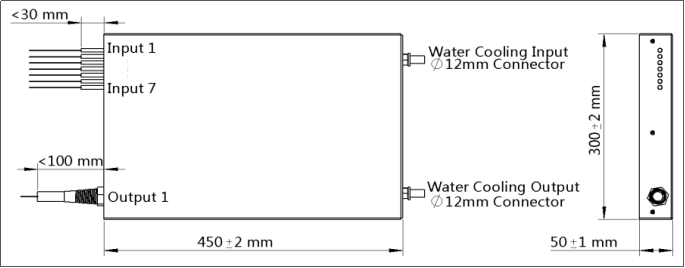

Package Dimensions

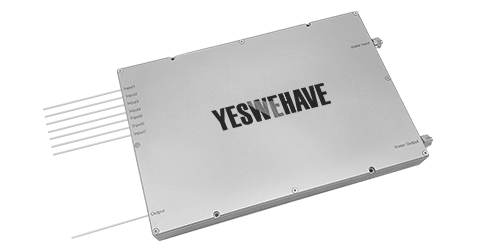

High Power 7x1 Laser Combiner Module
Overview
The High Power 7x1 Laser Combiner Module is designed for combining N units of kW class fiber lasers with high efficiency. Available for different fiber types.
Parameter | Unit | Value |
Product Type* | - | N×1 |
Laser Wavelength Range | nm | 1080 |
Fiber Type for Input | - | LMA-GDF-20/130-M or LMA-GDF-20/400-M |
Fiber Type for Output | - | Nufern BD-S100/120/360-STN, NA0.22 |
Max. Combined Power | W | 20000 or above |
Max. Input Power Handling per Port | W | 3000 or above |
Max. Backward Power Handling** | W | 1000 |
Typ. Power Transfer Efficiency** | % | 99 |
Min. Power Transfer Efficiency** | % | 97 |
mm·mrad | 2.5 - 4 | |
mm | 450 (L) ×300 (W) ×50 (H) | |
Cooling Water Temperature | ℃ | 10 - 25 |
Storage Temperature | ℃ | -20 to + 70 |
*Do not operate without proper high power termination (QBH cable, for example).
**The power in the core of the fiber.
***Active cooling water required.
