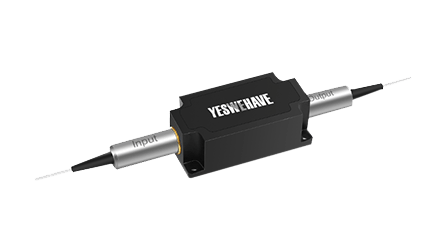

1064 nm 2 W High Power Polarization Insensitive Isolator
The 1064 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The High Power Polarization Insensitive Isolator is ideal for fiber lasers and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Typ. Peak Isolation | dB | 35 |
Min. Isolation, λc, @ All Polarization States | dB | 28 |
Typ. Insertion Loss | dB | 1.7 |
Max. Insertion Loss and Input Power @ 300 mW | dB | 2.0 |
Max. Insertion Loss and Input Power @ 1 W | dB | 2.5 |
Max. Insertion Loss and Input Power @ 2 W | dB | |
Min. Return Loss (Input/Output) | dB | 50/50 |
Max. Polarization Dependent Loss | dB | 0.2 |
Max. Average Optical Power | W | 2 |
Max. Peak Power (Pulse Width, 10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | HI 1060 |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
11L is 0.5 dB higher, and RL is 5 dB lower for each connector added.
2The optical power handling capability will be max 1 W when the isolator is terminated with connectors.
3All of above value are tested at room temperature @ 23 ℃, unless other specified.
