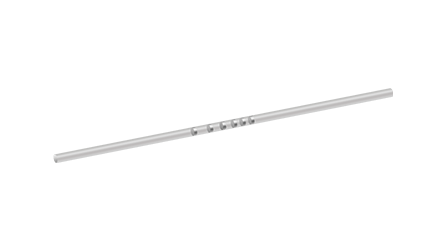

Fiber Bragg Grating Reflector for Ultrafast Lasers
The Fiber Bragg Grating Reflectors are components designed for ultrafast lasers without extra dispersion. With YESWEHAVE's design and special process, the FBG have ultra low temperature slope and outstanding reliability. Custom configurations are available.
Parameter | Unit | Values |
Center Wavelength | nm | 1030.0, 1064.3 |
Tolerance on Center Wavelength | nm | ± 0.5 |
Peak Reflectivity1 | % | ≥ 5 - 99% |
Reflection Bandwidth (FWHM)2 | nm | 0.2 - 0.7 |
Tolerance on Reflection Bandwidth | nm | 0.1 |
Min. Core Signal Power Handling | mW | 500 |
Fiber Type3 | - | PM980, PM1060, PM10/125 |

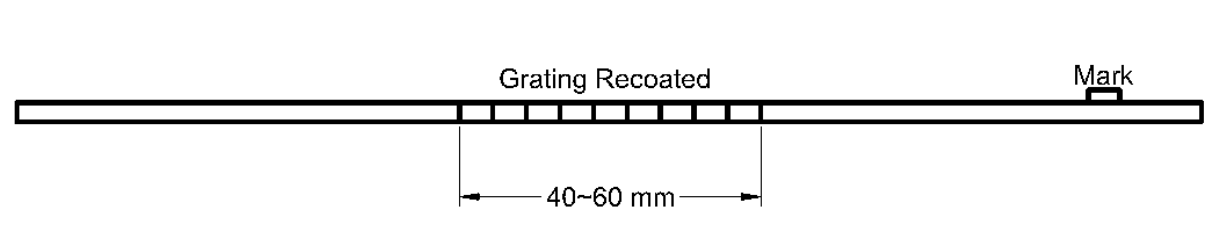

Package Dimensions | mm | Recoated |
Storage Temperature | ℃ | - 40 to + 85 |
1The Peak Reflectivity could be customized.
2The FWHM depends on the peak reflectivity.
3The fiber type could be customized.
