Cladding Power Stripper
Overview

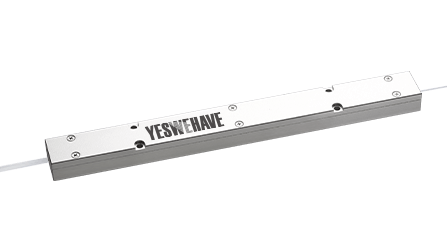

The multimode optical power stripper (CPS) is designed for high power fiber laser and amplifier applications. This device is ideal for stripping residual pump power, ASE and escaped core modes from inner cladding of double cladding fibers while preserving minimal degradation of signal power and beam quality (M2). Reflected signal power into the inner cladding can be stripped out as well.

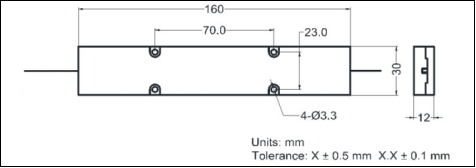

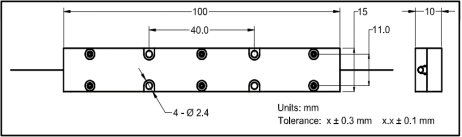

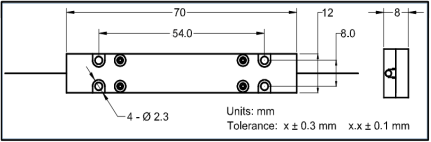

Parameter | Unit | Value | ||
Operating Signal Wavelength | nm | 800 - 2000 | ||
Min. Stripping Efficiency* | % | 98 | ||
Typ. Signal Insertion Loss | dB | 0.05 | ||
Max. Signal Insertion Loss | dB | 0.2 | ||
Min. Polarization Extinction Ratio | dB | 20 | ||
Fiber Type | - | PM or Non-PM x/125, x/250, x/400 DCF | ||
Max. Stripped Power | W | 50 | 100 | 250 |
Package Type | - | L70 | L100 | L160 |
Operating Temperature | ℃ | -5 to +70 | ||
Storage Temperature | ℃ | -40 to +85 | ||
*Fully filled condition.
*Bottom side of device must be mounted onto heat sink with good interface contact and active cooling.
