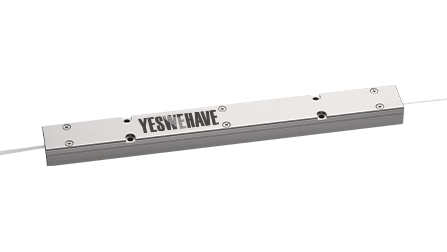

(6+1)×1 Multimode Pump & Signal Combiner

Parameter	Unit	Value
Product Type	-	(6+1)x1
Pump Wavelength Range	nm	900 - 1000
Signal Wavelength Range	nm	1064
Fiber Type for Input (Pump Channel)	µm	Nufern 105/125 (0.15 NA or 0.22 NA)
Fiber Type for Input (Signal Channel)	µm	HI1060 or 20/130 DC, NA=0.08/0.46
Fiber Type for Output	µm	20/130 DC, NA=0.08/0.46
Max. Input Pump Power	W	6 x 50
Signal Channel Insertion Loss	dB	<0.70
Typ. Signal Channel Insertion Loss	dB	0.5
Typ. Pump Efficiency	%	95
Min. Pump Efficiency	%	93

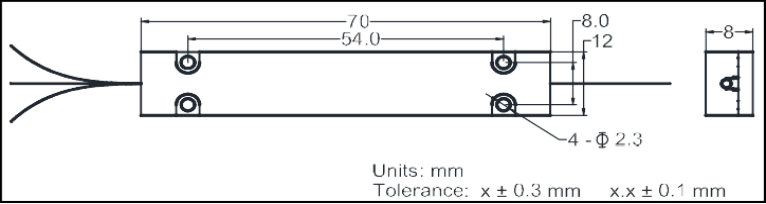

Package Dimensions	mm	70(L) x 12(W) x 8(H)
Operating Temperature	℃	-5 to +65
Storage Temperature	℃	-40 to +85

Mode numbers summation of all input fibers should be less than that of output fiber.

Ordering Information	Qty	Price	Available

Ordering Information

QuantityPriceAvailable

Please select the ordering information to view price.

Available Configurations and Pricing for (6+1)×1 Multimode Pump & Signal Combiner

Configuration: 1064 nm 915 nm 105/125 (NA 0.15) HI1060 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 915 nm 105/125 (NA 0.15) HI1060 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 915 nm 105/125 (NA 0.15) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 915 nm 105/125 (NA 0.15) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 915 nm 105/125 (NA 0.22) HI1060 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 915 nm 105/125 (NA 0.22) HI1060 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 915 nm 105/125 (NA 0.22) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 915 nm 105/125 (NA 0.22) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.15) HI1060 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.15) HI1060 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.15) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.15) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.22) HI1060 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.22) HI1060 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.22) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm 976 nm 105/125 (NA 0.22) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.15) HI1060 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.15) HI1060 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.15) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.15) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.22) HI1060 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.22) HI1060 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.22) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 0.75 m - Price: $10000 - Stock: 1000
Configuration: 1064 nm Specify 105/125 (NA 0.22) 20/130 DC, NA=0.08/0.46 20/130 DC, NA=0.08/0.46 1.0 m - Price: $10000 - Stock: 1000
