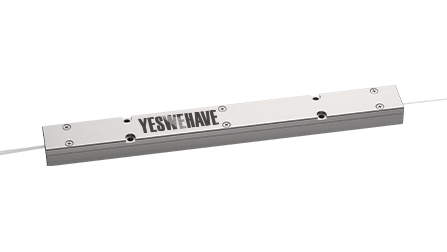

(6+1)×1 High Power Backward Pump & Signal Combiner

Overview

Parameter

Unit

Value

Product Type

-

Backward Pump (6+1) x 1

Pump Wavelength Range

nm

800 - 1000

Signal Wavelength Range

nm

1060 - 1080

Fiber Type for Input (Pump Channel)

µm

200/220 or 220/242, NA=0.22/0.46

Fiber Type for Input (Signal Channel)

µm

20/400 or 25/400, NA=0.065/0.46

Fiber Type for Output

µm

20/400 or 25/400, NA=0.065/0.46

Max. Signal Channel Insertion Loss

dB

0.2

Min. Pump Efficiency

%

98

Max. Input Pump Power

W

500 x 6

Max. Input Signal Power

W

3000

Max. Backward Pump Power Handling

W

300

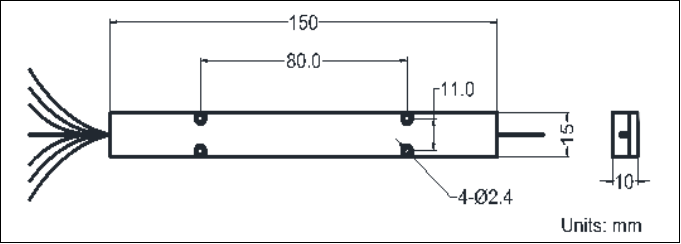

Package Dimensions

mm

150(L) x 15(W) x 10(H)

Operating Temperature

℃

-5 to +65

Storage Temperature

℃

-40 to +85

Mode numbers summation of all input fibers should be less than that of output fiber.
Ordering InformationQtyPriceAvailable
Ordering Information
QuantityPriceAvailable
Please select the ordering information to view price.

Available Configurations and Pricing for (6+1)×1 High Power Backward Pump & Signal Combiner

  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1060 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 915 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 200/220, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 20/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 20/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 0.75 m - Price: $10000 - Stock: 1000
  • Configuration: 1080 nm 976 nm 220/242, NA=0.22/0.46 25/400, NA=0.065/0.46 25/400, NA=0.065/0.46 1.0 m - Price: $10000 - Stock: 1000
