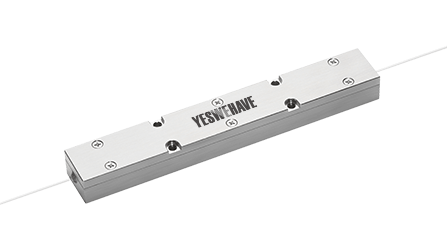

N×1 High Power Pump Combiners
This product is mainly used in fiber laser and Fiber Laser Power Amplifiers, etc., it has a high power coupling efficiency.
Optical and Operation Specifications
Parameter | Unit | Values |
Pump Wavelength Range | nm | 800 - 1000 |
Operating Temperature | ℃ | -5 to +70 |
Storage Temperature | ℃ | -40 to +85 |
Cooling method | - | Bottom conduction cooling |
Typical Fiber Combinations

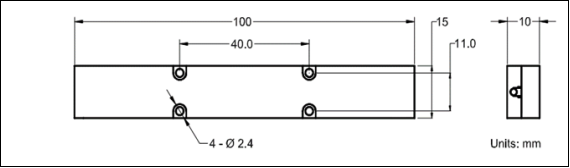

Item | Confi. | Pump Fiber Type | Output Fiber Type | Pump Efficiency | Power Handling | Package |
01 | 3×1 | 105/125, 0.22NA | 220/242, 0.22NA | 97% | 200W/leg | B - 100*15*10 |
02 | 135/155, 0.22NA | 220/242, 0.22NA | 95% | 300W/leg | B - 100*15*10 | |
300/330, 0.22NA | ||||||
03 | 200/220, 0.22NA | 400/440, 0.22NA | 95% | 500W/leg | B - 100*15*10 | |
04 | 4×1 | 105/125, 0.22NA | 220/242, 0.22NA | 96% | 200W/leg | B - 100*15*10 |
300/330, 0.22NA | ||||||
05 | 135/155, 0.22NA | 400/440, 0.22NA | 96% | 300W/leg | B - 100*15*10 | |
06 | 220/242, 0.22NA | 400/480, 0.22NA | 90% | 500W/leg | D - 160*30*12 | |
07 | 200/220, 0.22NA | 600/660, 0.22NA | 96% | 500W/leg | B - 100*15*10 | |
08 | 7×1 | 105/125, 0.22NA | 220/242, 0.22NA | 95% | 200W/leg | B - 100*15*10 |
135/155,0.22NA | 300/330, 0.22NA | |||||
400/440, 0.22NA | ||||||
09 | 105/125, 0.22NA | X/125, 0.46NA | 97% | 200W/leg | D - 160*30*12 | |
X/250, 0.46NA | ||||||
X/400, 0.46NA | ||||||
10 | 200/220, 0.22NA | X/400, 0.46NA | 97% | 800W/leg | D - 160*30*12 | |
11 | 200/220, 0.22NA | 400/480, 0.22NA | 90% | 500W/leg | D - 160*30*12 | |
12 | 220/242, 0.22NA | 400/480, 0.22NA | 90% | 500W/leg | D - 160*30*12 | |
13 | 200/220, 0.22NA | 600/660, 0.22NA | 95% | 1000W/leg | D - 160*30*12 | |
14 | 220/242, 0.22NA | 600/660, 0.22NA | 95% | 1000W/leg | D - 160*30*12 | |
15 | 19×1 | 105/125, 0.22NA | X/400, 0.46NA | 96% | 250W/leg | D - 160*30*12 |
135/155, 0.22NA | 600/660, 0.22NA |
* X=6, 8, 10, 15, 20, 25, 30 etc
* The fiber core shape can be round, square or other customized.
