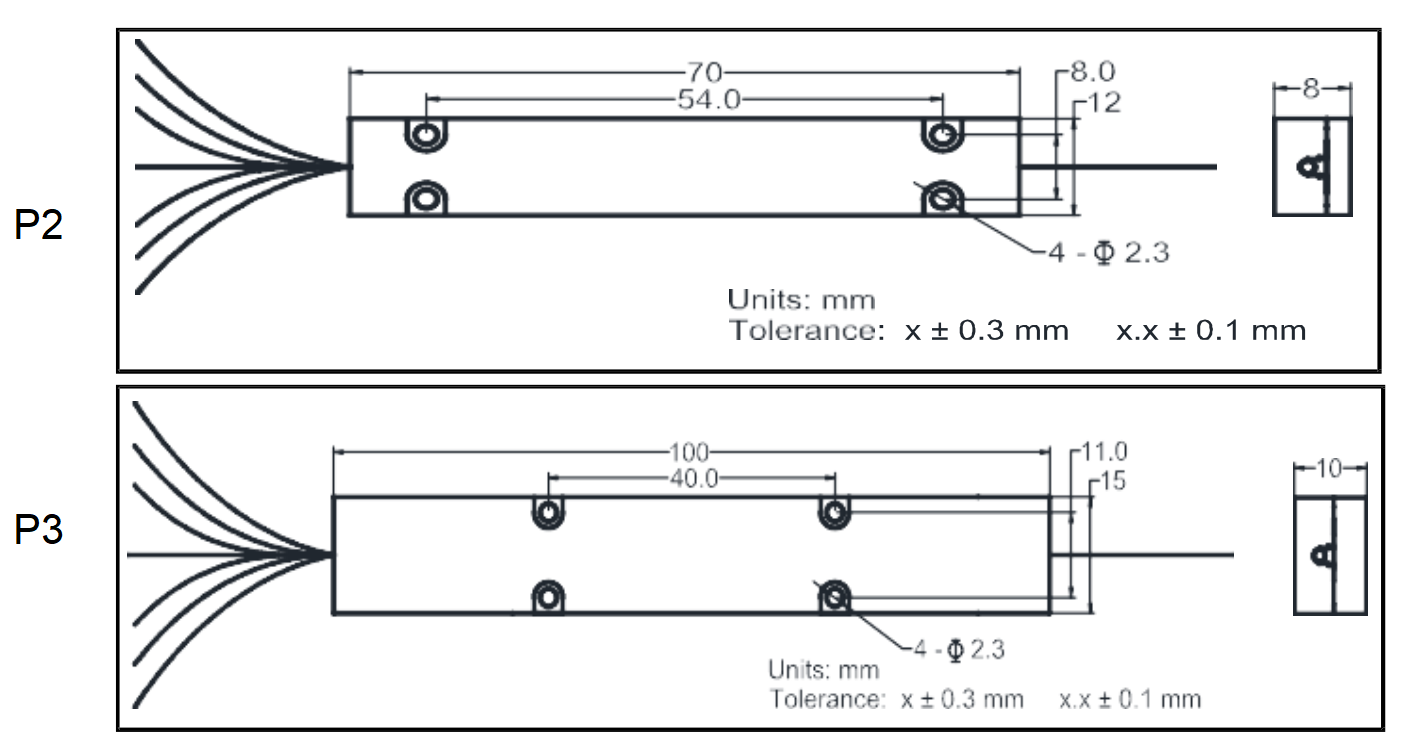

Package Dimensions
(6+1)×1 Polarization Maintaining Pump & Signal Combiner
Parameter | Unit | Value | |
Product Type | - | PM (6+1)x1 | |
Pump Wavelength Range | nm | 900 - 1000 | |
Signal Wavelength Range | nm | 1064, 1550 | |
Fiber Type for Input (Pump Channel) | µm | Nufern 105/125 (0.15 NA or 0.22 NA) | |
Fiber Type for Input (Signal Channel) | µm | PM980, PM1550, PM-6/125 DC or PM-8/125 DC | |
Fiber Type for Output | µm | PM-10/125 DC or PM-20/125 DC | |
Signal Channel Insertion Loss | dB | <0.80 | |
Min. Pump Efficiency | % | 94 | |
Max. Input Pump Power | W | 6 x 50 | 6 x 100 |
Package Dimensions | mm | P2: 70(L) x 12(W) x 8(H) | P3: 100(L) x 15(W) x 10(H) |
Operating Temperature | ℃ | -5 to +65 | |
Storage Temperature | ℃ | -40 to +85 | |
Mode numbers summation of all input fibers should be less than that of output fiber.
