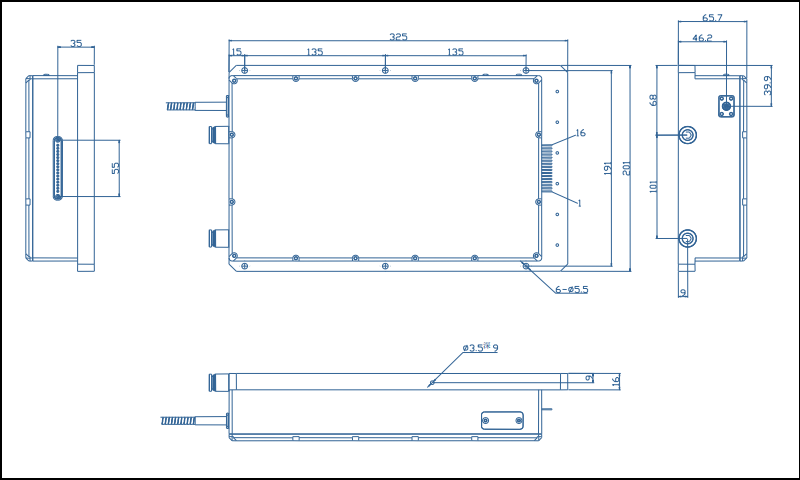

500 W Blue Diode Laser Module

Optical Parameter

Output Power

-

500

-

W

Center Wavelength

-

450 ± 10

-

nm

(FWHM) Spectral Width

-

4.0

nm

Electrical Parameter

Threshold Current

-

0.5

-

A

Operating Current

-

-

3.5

A

Operating Voltage (Single Channel)

-

93

110

V

Slope Efficiency (Single Channel)

-

33

-

W/A

Power Conversion Efficiency

-

29.8

-

%

Aiming Laser Parameter

Power

-

2

-

mW

Center Wavelength

-

650 ± 10

-

nm

Operating Current

-

< 30

-

mA

Operating Voltage

-

5

-

V

Fiber Parameter

Core Diameter

-

200

-

μm

Cladding Diameter

-

500

-

μm

Tight-Buffered Layer

-

1300

-

μm

Numerical Aperture

-

0.22

-

-

Fiber Length

-

1 - 5

-

m

Fiber Connector

-

D80

-

-

Water Cooling

Cooling Capacity

W

2500

Min. Flow

L/min

8.0

Water Pressure

Mpa

0.3

Water Temperature

℃

20

PH

5.6 - 7.9

Water Quality

Purified Water/Distilled Water

Other Parameter

Min.

Max.

Unit

Operating Temperature

10

40

℃

Relative Operating Humidity (ROH)

-

75

%

Storage Temperature

- 20

80

℃

Pin

Function

Pin

Function

1

LD 1 (+)

9

LD5 (+)

2

LD 1 (-)

10

LD5 (-)

3

LD 2 (+)

11

LD6 (+)

4

LD 2 (-)

12

LD6 (-)

5

LD 3 (+)

13

Indicator Light (+ 5V)*

6

LD 3 (-)

14

Indicator Light (0V)

7

LD 4 (+)

15

PD (N)

8

LD 4 (-)

16

PD (P)
