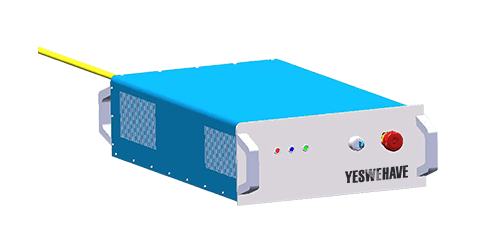

250 W Blue Diode Laser
450 nm blue lasers offer superior absorption for non-ferrous metals, with copper and aluminum absorbing over 50%, compared to less than 5% for infrared. This ensures stable processing, reduces spatter, minimizes heat impact, and enables high-quality welding and cutting of thin, reflective materials. Ideal for EVs, aerospace, and electronics. YESWEHAVE's High Power Blue Laser series delivers the most compact visible lasers in its class. The high-power diode laser's flexibility enables a wide range of industrial applications, making it essential for modern manufacturing.
Optical Parameters | Unit | Value (Typical) |
Center Wavelength | nm | 450 |
Output Power | W | 250 |
Typical (FWHM) Spectral Width | nm | 4 |
Fiber Parameters | ||
Core Diameter | μm | 105 |
Cladding Diameter | μm | 500 |
Numerical Aperture | - | 0.22 |
Fiber Connector | - | D80 |
Electrical Parameters | ||
Threshold Current | A | 0.4 |
Operating Current | A | 3 |
Operating Voltage (Single Channel) | V | 65 |
Slope Efficiency (Single Channel) | W/V | 24.5 |
Power Conversion Efficiency | % | 30 |
Aiming Laser Parameters | ||
Center Wavelength | nm | 650 |
Power | mW | 2 |
Water Cooling | ||
Cooling Capacity | W | 1000 |
Min. Flow | L/min | 4 |
Water Pressure | Mpa | 0.3 |
Water Temperature | ℃ | 20 |
PH | - | 5.6 - 7.9 |
Water Quality | - | Purified Water/Distilled Water |
Other Parameters | ||
Operating Temperature | ℃ | 10 - 40 |
Relative Operating Humidity (ROH) | % | 30 - 70 |
Storage Temperature | ℃ | -20 - 80 |
Storage Relative Humidity | % | 30 - 90 |
For more information about the product, please contact us at sales@yeswehave.com
