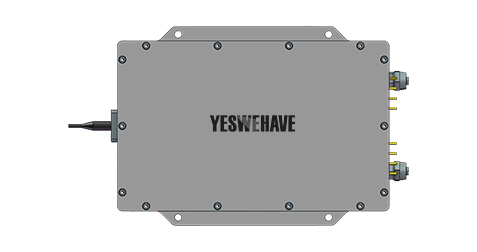

200 W Blue Diode Laser Module
Blue Semiconductor Laser Module are based on our product families and have been established in industrial applications for many years. They offer the most compact visible lasers in this power class. At the same time, absorption and thus process efficiency are increased significantly compared to IR lasers.
Parameters | Min. | Typical | Max. | Unit | |
Optical Parameters | |||||
Output Power | 200 | - | - | W | |
Center Wavelength | - | 450 ± 10 | - | nm | |
(FWHM) Spectral Width | - | 4.0 | 10.0 | nm | |
Electrical Parameters | |||||
Threshold Current | - | 0.6 | - | A | |
Operating Current | - | 3.0 | 3.5 | A | |
Operating Voltage (Single Channel) | - | 65 | 70 | V | |
Slope Efficiency (Single Channel) | 18 | 20.5 | - | W/A | |
Power Conversion Efficiency | 22 | 25 | - | % | |
Aiming Laser Parameters | |||||
Power | 2 | - | 5 | mW | |
Center Wavelength | - | 650 ± 10 | - | nm | |
Fiber Parameters | |||||
Core Diameter | - | 100 | - | μm | |
Cladding Diameter | - | 500 | - | μm | |
Numerical Aperture | - | 0.22 | - | - | |
Fiber Length | - | 1 | 5 | m | |
Fiber Connector | - | D80 | - | - | |
Water Cooling | |||||
Cooling Capacity | 1000 | W | |||
Min. Flow | 4.0 | L/min | |||
Water Pressure | 0.3 | MPa | |||
Water Temperature | 20 | ℃ | |||
PH | 5.6 ~ 7.9 | ||||
Water Quality | RO/DW | ||||
Pin-Out Assignment | |||
Pin | Function | Pin | Function |
1 | LD 1 (+) | 9 | Aiming Beam (+) |
2 | LD 1 (-) | 10 | Aiming Beam (-) |
3 | LD 2 (+) | 11 | Thermistor |
4 | LD 2 (-) | 12 | Thermistor |
5 | LD 3 (+) | 13 | - |
6 | LD 3 (-) | 14 | - |
7 | LD 4 (+) | 15 | PD (N) |
8 | LD 4 (-) | 16 | PD (P) |
For more information about product requirements, please contact us at sales@yeswehave.com.
