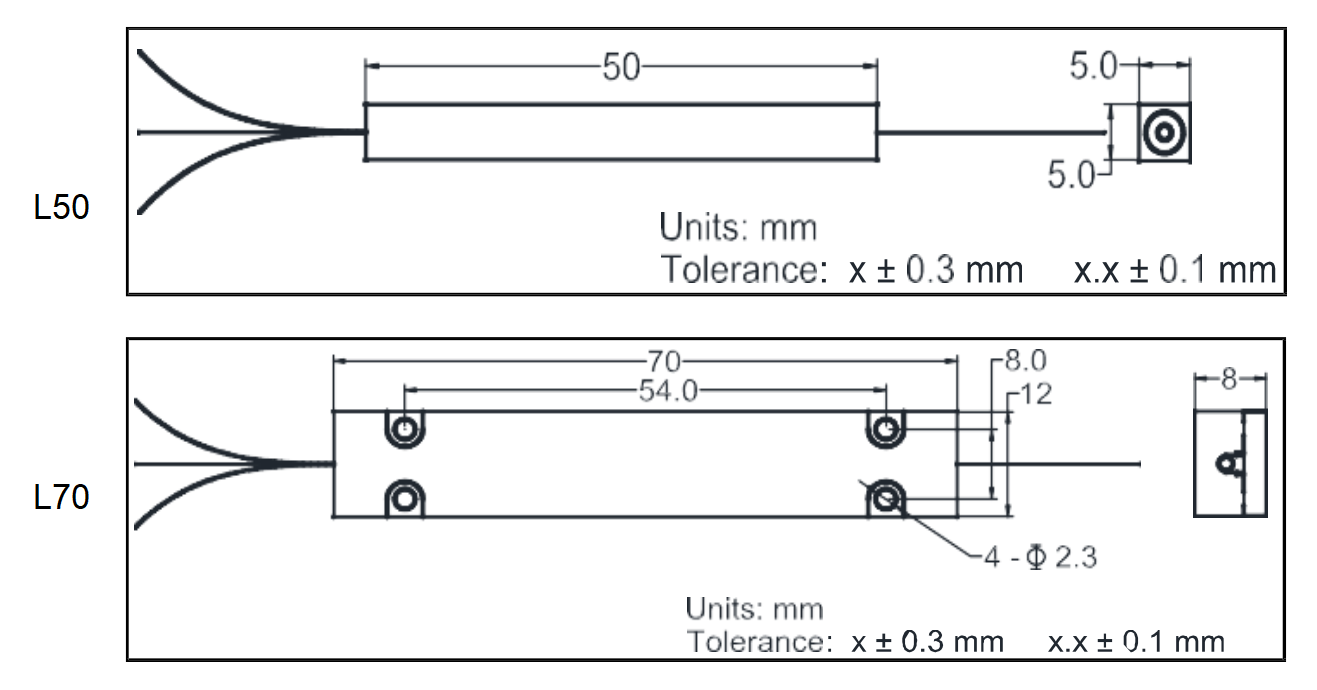

Package Dimensions

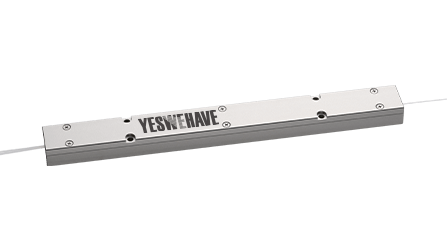

(2+1)×1 Polarization Maintaining Pump & Signal Combiner
Parameter | Unit | Value | |
Product Type | - | PM (2+1)x1 | |
Pump Wavelength Range | nm | 800 - 1000 | |
Signal Wavelength Range | nm | 1064, 1550 | |
Fiber Type for Input (Pump Channel) | µm | Nufern 105/125 (0.15 NA or 0.22 NA) | |
Fiber Type for Input (Signal Channel) | µm | PM980, PM1550, PM-6/125 DC or PM-8/125 DC | |
Fiber Type for Output | µm | PM-6/125 DC or PM-8/125 DC | |
Max. Signal Channel Insertion Loss | dB | 0.4 | |
Min. PER | dB | 18 | |
Min. Pump Efficiency | % | 93 | |
Max. Input Pump Power | W | 2 x 5 | 2 x 100 |
Package Dimensions | mm | L50: 50(L) x 5(W) x 5(H) | L70: 70(L) x 12(W) x 8(H) |
Operating Temperature | ℃ | -5 to +65 | |
Storage Temperature | ℃ | -40 to +85 | |
Mode numbers summation of all input fibers should be less than that of output fiber.
