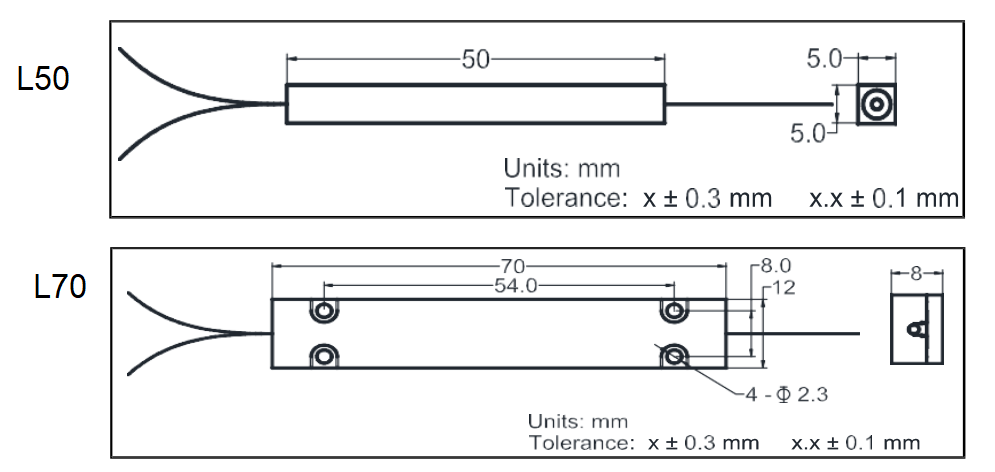

Package Dimensions

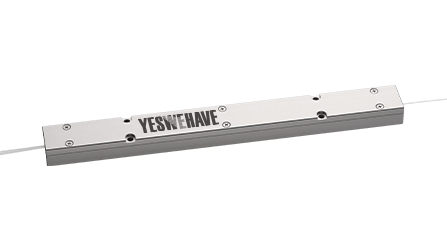

(1+1)×1 Multimode Pump & Signal Combiner
Parameter | Unit | Values | |
Product Type | - | (1+1)x1 | |
Pump Wavelength Range | nm | 800 - 1000 | |
Signal Wavelength Range | nm | 1064, 1550 | |
Fiber Type for Input (Pump Channel) | µm | 105/125 (0.15 NA or 0.22 NA) | |
Fiber Type for Input (Signal Channel) | µm | 6/125 DC or 10/125 DC | |
Fiber Type for Output | µm | 6/125 DC or 10/125 DC | |
Signal Channel Insertion Loss | dB | <0.30 | |
Typ. Pump Efficiency | % | 94 | |
Min. Pump Efficiency | % | 92 | |
Max. Input Pump Power | W | 1 x 10 | 1 x 100 |
Package Dimensions | mm | L50: 50(L) x 5(W) x 5(H) | L70: 70(L) x 12(W) x 8(H) |
Operating Temperature | ℃ | -5 to +65 | |
Storage Temperature | ℃ | -40 to +85 | |
Mode numbers summation of all input fibers should be less than that of output fiber.
