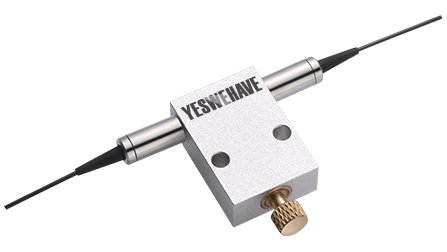

Polarization Maintaining Manual Variable Optical Attenuator
The PM Manual Variable Optical Attenuator (MVOA) operates by manually moving a shading element into optical beam. The shading element can be integrated and adjusted to get any attenuation value in a range. MVOA features low insertion loss, good resolution, high stability and good reliability. The Manual Variable Optical Attenuator applies for pre-emphasis attenuation, transmitter power control, in-line power equalization, and amplifier power control, etc.
Parameter | Unit | Values | ||||
Center Wavelength (λc) | nm | 488, 532, 635 | 780, 850 | 980, 1064 | 1310, 1550 | 1700, 2000 |
Operating Wavelength | nm | λc ± 20 | λc ± 20 | λc ± 50 | λc ± 50 | λc ± 50 |
Max. Excess Loss | dB | 1.5 | 1.0 | 0.6 | 0.4 | 0.5 |
Max. WDL, Minimum Attenuation | dB | 0.5 | 0.5 | 0.3 | 0.3 | 0.3 |
Attenuation Range | - | Excess Loss to 60 dB | ||||
Resolution within 10 dB Attenuation Range | dB | 0.1 | ||||
Min. Extinction Ratio, 23 ℃ | dB | 18 | 18 | 20 | 20 | 20 |
Max. TDL at Attenuation Range, λc | dB/℃ | 0.01 | ||||
Min. Return Loss | dB | 55 | ||||
Max. Optical Power (Continuous Wave) | mW | 300 | ||||
Operating Temperature | ℃ | 0 to + 70 | ||||
Storage Temperature | ℃ | - 40 to + 85 | ||||

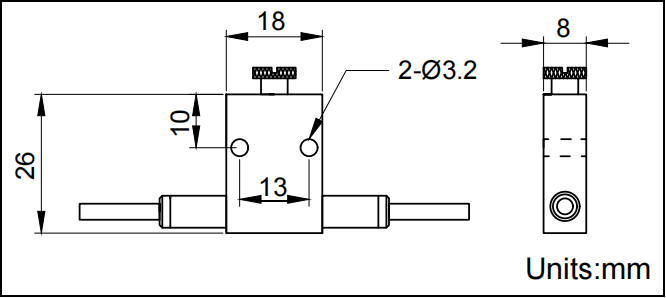

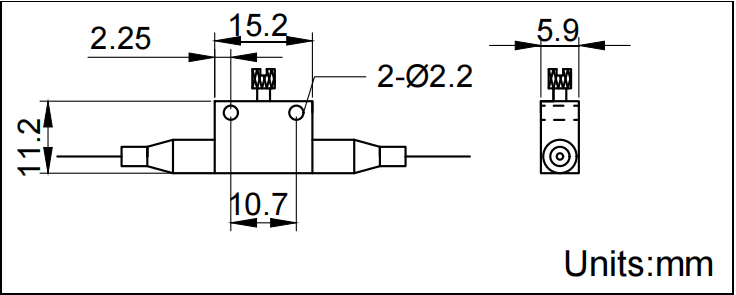

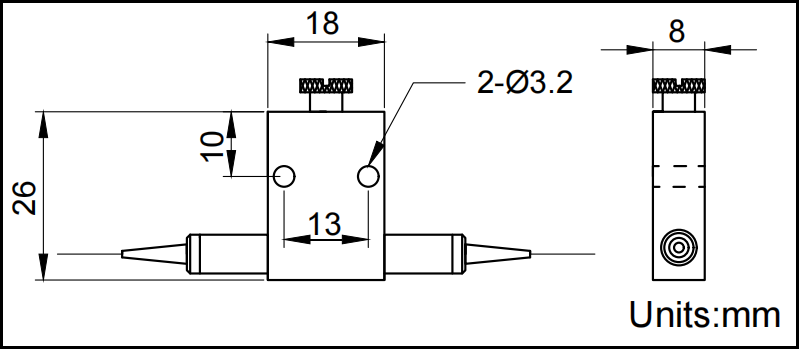

For device with connector, IL is 0.3 dB higher, RL is 5 dB lower, The default connector key is aligned to slow axis.
