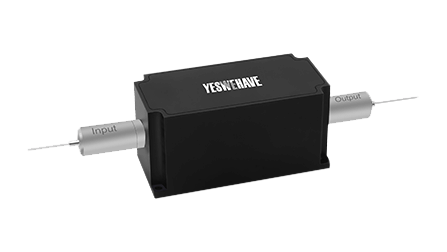

830 nm 10 W High Power Polarization Insensitive Isolator
The 830 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 830 |
Operating Wavelength Range | nm | λc ± 75 |
Max. Polarization Dependent Loss | dB | 0.2 |
Min. Isolation, λc, @ All Polarization States | dB | 28 |
Min. Isolation, λc ± 75 nm, All Polarization States | dB | 23 |
Max. Insertion Loss, λc | dB | 1.0 |
Max. Insertion Loss, λc ± 75 nm | dB | 3.0 |
Min. Return Loss (Input/Output) | dB | 45/45 |
Max. Optical Power (Continuous Wave) | W | 10 |
Max. Tensile Load | kW | 5 |
Fiber Type | N | HI 780 SM |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
2The optical power handling capability will be max 1 W when the isolator is terminated with connectors.
3All of above value are tested at room temperature @ 23 ℃, unless other specified.
