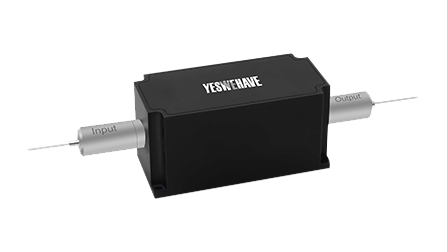

1064 nm 10 W High Power Polarization Insensitive Isolator
Overview
The High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. This optical isolator is ideal for fiber lasers and instrumentation applications.
Parameter | Unit | Value |
Center Wavelength (λc) | nm | 1064 |
Operating Wavelength Range | nm | λc ± 10 |
Typ. Peak Isolation | dB | 30 |
Min. Isolation, λc @ All Polarization States | dB | 25 |
Typ. Insertion Loss | dB | 0.8 |
Max. Insertion Loss | dB | 1 |
Min. Return Loss (Input/Output) | dB | 45/45 |
Max. Polarization Dependent Loss | dB | 0.2 |
Max. Average Optical Power | W | 10 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 |
Max. Tensile Load | N | 5 |
Fiber Type | - | Specified by ordering info |
Operating Temperature | ℃ | + 10 to + 50 |
Storage Temperature | ℃ | 0 to + 60 |
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1064 nm 10 W High Power Polarization Insensitive Isolator
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m HI 1060 Fiber Pulsed - Price: $518 - Stock: 100
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m HI 1060 Fiber Continuous Wave - Price: $518 - Stock: 100
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m Nufern FUD-3584 Fiber Pulsed - Price: $518 - Stock: 100
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m Nufern FUD-3584 Fiber Continuous Wave - Price: $518 - Stock: 99
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m Nufern LMA-GDF-20/130-M Pulsed - Price: $518 - Stock: 100
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m Nufern LMA-GDF-20/130-M Continuous Wave - Price: $518 - Stock: 100
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m Specify Pulsed - Price: $518 - Stock: 100
- Configuration: 1064 nm 10 W None B - 250 μm Bare Fiber 1.0 m Specify Continuous Wave - Price: $518 - Stock: 100
