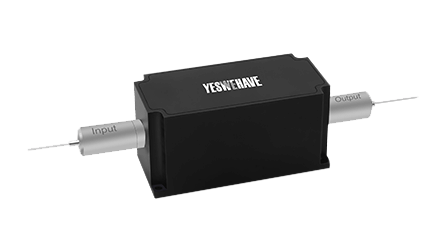

1030 nm 10/20 W High Power Polarization Insensitive Isolator
Overview
The High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The fiber isolator is ideal for fiber lasers and instrumentation applications.

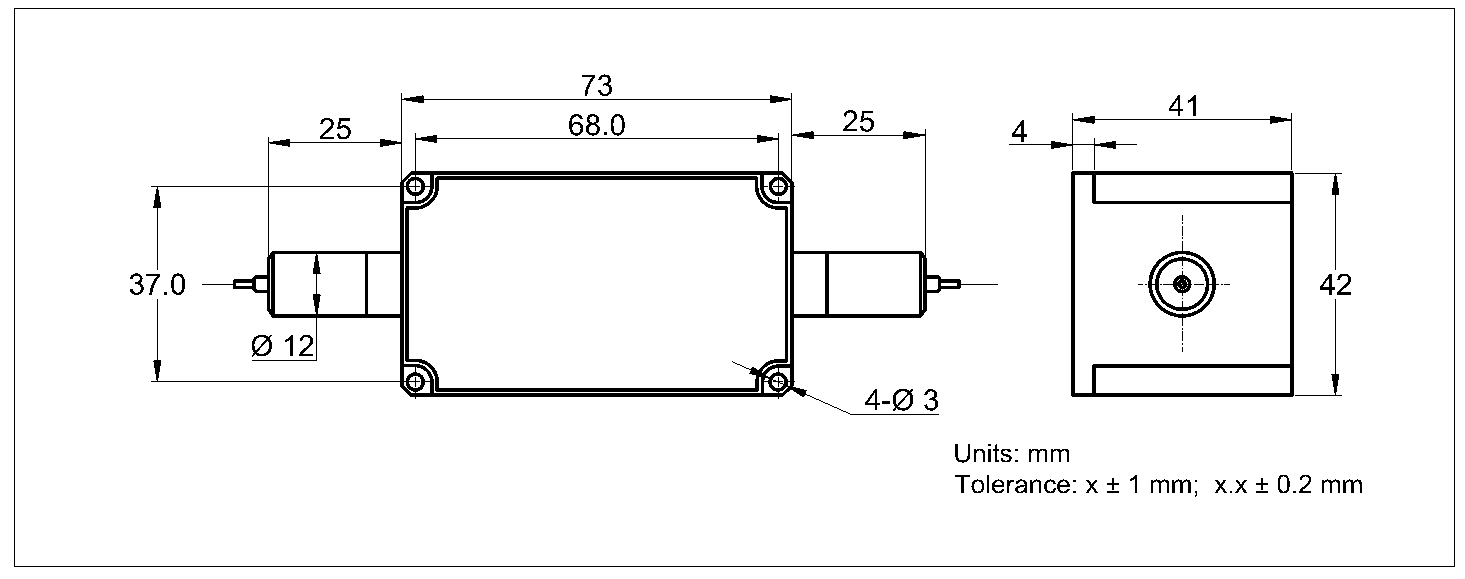

Parameter | Unit | Type A | Type B |
Center Wavelength (λc) | nm | 1030 | |
Operating Wavelength Range | nm | λc ± 10 | |
Typ. Peak Isolation | dB | 30 | |
Min. Isolation, λc, @ All Polarization States | dB | 25 | |
Typ. Insertion Loss | dB | 0.8 | |
Max. Insertion Loss | dB | 1 | |
Max. IL Output To Reflection (MMF), (Output to MMF) | dB | None | 1 |
Min. Return Loss (Input/Output) | dB | 50/50 | |
Max. Polarization Dependent Loss | dB | 0.2 | |
Max. Average Optical Power | W | 10 | 20 |
Max. Peak Power (Pulse Width,10 ns) | kW | 10 | |
Max. Tensile Load | N | 5 | |
Fiber Type | - | HI 1060 | |

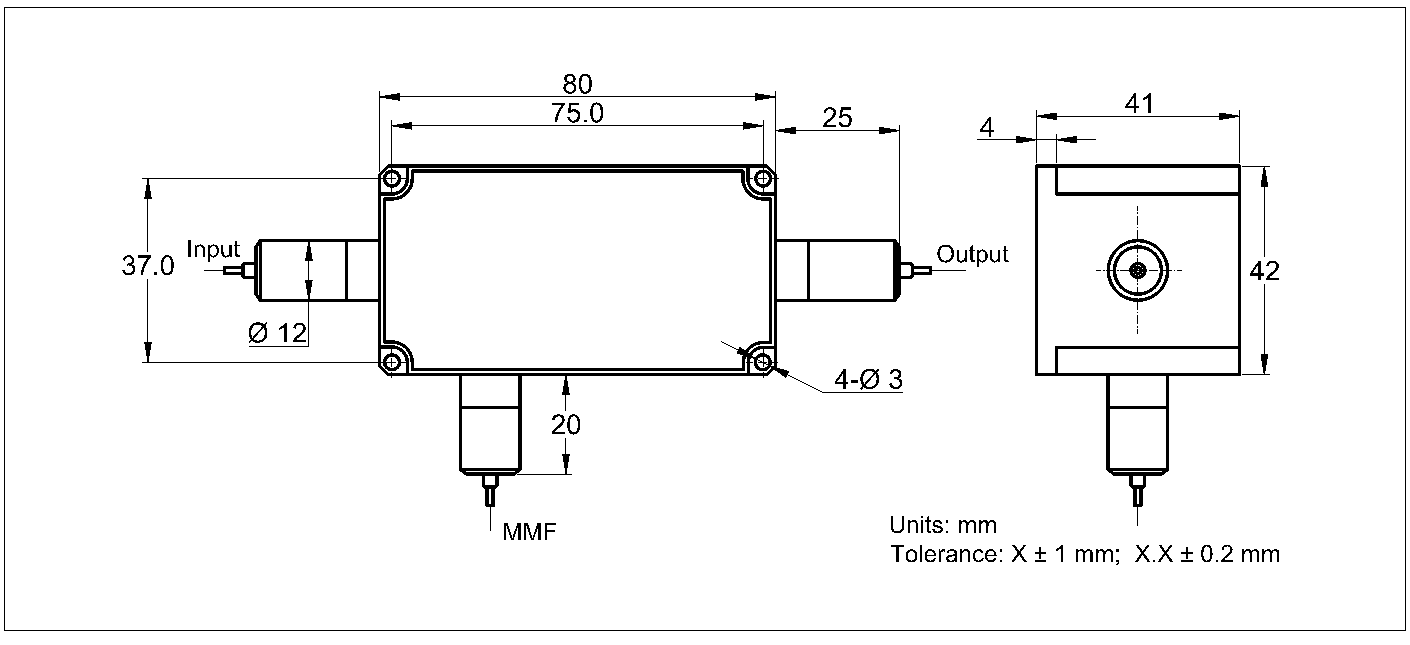

MMF Fiber Type | - | None | MMF-105/125 |
Operating Temperature | ℃ | + 10 to + 50 | |
Storage Temperature | ℃ | 0 to + 60 | |
Note: MMF Port is To take out useless light.
1All of above value are tested at room temperature @ 23 ℃, unless other specified.
| Ordering Information | Qty | Price | Available |
|---|---|---|---|
Available Configurations and Pricing for 1030 nm 10/20 W High Power Polarization Insensitive Isolator
- Configuration: 1030 nm Type A 10 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Pulse Application - Price: $588 - Stock: 100
- Configuration: 1030 nm Type A 10 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Continuous Wave - Price: $588 - Stock: 100
- Configuration: 1030 nm Type A 20 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Pulse Application - Price: $660 - Stock: 100
- Configuration: 1030 nm Type A 20 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Continuous Wave - Price: $660 - Stock: 100
- Configuration: 1030 nm Type B 10 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Pulse Application - Price: $588 - Stock: 100
- Configuration: 1030 nm Type B 10 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Continuous Wave - Price: $588 - Stock: 100
- Configuration: 1030 nm Type B 20 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Pulse Application - Price: $660 - Stock: 100
- Configuration: 1030 nm Type B 20 W None 250 μm Bare Fiber 1.0 m HI 1060 Fiber Continuous Wave - Price: $660 - Stock: 100
