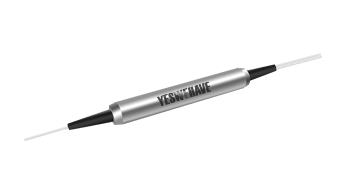

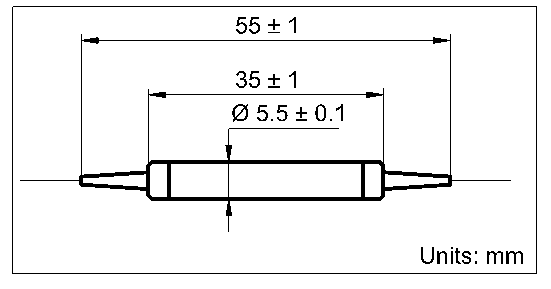

Polarization Maintaining Bandpass Filter
The PM Bandpass Filter is a micro optics device based on environmentally stable thin-film filter technology. It is used to block out unwanted wavelength bands in fiber laser systems. The components are characterized with high isolation, low insertion loss, high extinction ratio, excellent environmental stability and high power handling capability.
Parameter | Unit | Values | |
Center Wavelength | nm | 1064 | |
CWL Tolerance | nm | ± 1 | ± 0.5 |
Filter Pass Band @ - 0.5 dB | nm | 2 | 8 |
Max. Insertion Loss over Pass Band | dB | 0.8 | 0.8 |
Wavelength Suppression @ (1020 - 1058 & 1070 - 1100 nm) for 2 nm | dB | 25 | N/A |
Wavelength Suppression @ (1000 - 1054 & 1074 - 1100 nm) for 8 nm | dB | N/A | 25 |
Min. Extinction Ratio | dB | 20 | |
Min. Return Loss | dB | 50 | |
Thermal Stability | dB/℃ | ≤ 0.005 | |
Max. Optical Power (Continuous Wave) | mW | 300 | |
Max. Tensile Load | N | 5 | |
Fiber Type | - | PM980 Panda | |
Operating Temperature | ℃ | - 5 to + 70 | |
Storage Temperature | ℃ | - 40 to + 85 | |
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
2All of above value are tested at room temperature @ 23 ℃, unless other specified.
